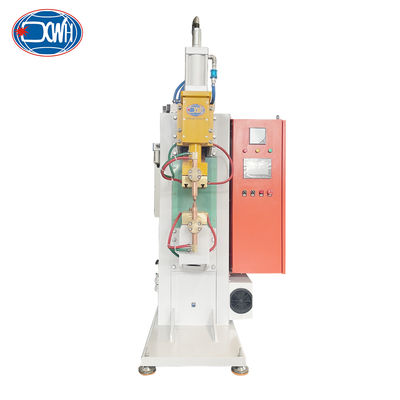

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder

Marchio:	XWH
Numero di modello:	D (N) B--100 ， D (N) B--160, D (N) B--200, D (N) B--250
MOQ:	1
prezzo:	USD20000-USD25000
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	50 set/mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, RoHs

Nome prodotto:

Saldatura per saldatura per saldatura per saldatura del condensatore di energia di scarico capacità

Applicazione:

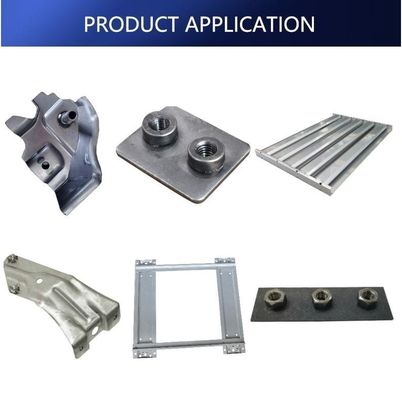

Bullone a vite da dado di saldatura

Funzione:

Saldatura di proiezione spot di resistenza

Tipo di macchina:

Saldatura della riseggio

Parole chiave:

Saldatrice a punti

Materiale di saldatura:

Acciaio inossidabile in alluminio in metallo in metallo

Caratteristica:

Saldatura stazionaria

Garanzia:

12 mesi di garanzia

Dopo il servizio di garanzia:

Supporto tecnico video, supporto online e pezzi di ricambio

Servizio post-vendita fornito:

Parti di ricambio gratuiti, installazione sul campo, messa in servizio e formazione

Imballaggi particolari:

Cassa in legno

Capacità di alimentazione:

50 set/mese

Descrizione del prodotto

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder

Product Introduction:

This capacitive energy storage point projection welding machine is an industrial grade solution designed specifically for high standard welding requirements. It adopts advanced capacitive energy storage technology, which can perfectly achieve convex welding of various fasteners such as screws, nuts, bolts, and studs by instantly releasing concentrated and stable huge currents, while easily performing conventional spot welding tasks. Its "manual loading and unloading, automatic welding" mode, combined with a sturdy body weighing 2000KG, ensures absolute stability of power output during the welding process and ultimate uniformity of solder joint quality, making it an inevitable choice for pursuing excellent connection quality.

Features:

1.The body is designed for impact resistance, earthquake resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.

2.The upper electrode is pressurized by a gas-liquid booster cylinder, and the electrode pressure is adjustable. The gas-liquid booster cylinder can achieve high output of the hydraulic cylinder using general air pressure without the need for a hydraulic unit.

3.The equipment is equipped with air pressure, water pressure switches, and alarms. It can effectively prevent water or gas shortage welding, thereby protecting the safety of equipment use.

4.The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

5.Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.

6.Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical.

7.Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

Technical Parameters:

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length( MM)	450	450	450	500
Working stroke( MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

General Structures:

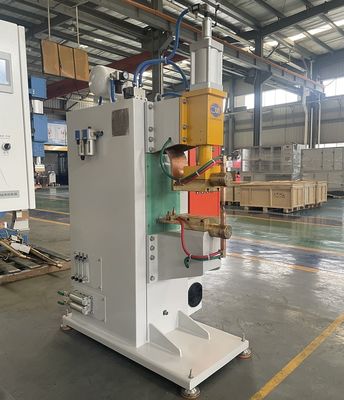

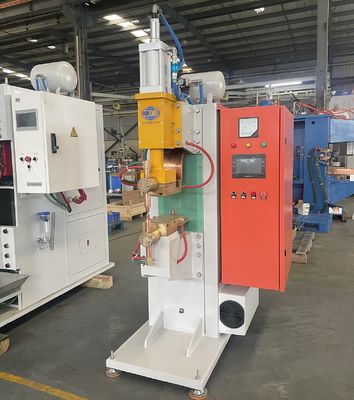

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 0

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 1

Detailed Images:

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 2

The Upper Electrode:The upper electrode moves vertically up and down in the linear guide, with high precision in repeated positioning, thus ensuring accurate welding points. Adopting double-layer cylinder pressurization, welding pressure is sufficient and stable.

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 3

Cylinders:The cylinder adopts a combination of aluminum alloy cylinder barrel, low damping sealing ring, and light friction ring, with wear-resistant surface and long service life, achieving extremely high spot welding speed, electrode pressurization, smooth and fast.

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 4

Gas Storage Tanks:Dual backup dedicated gas storage tanks, greatly reducing welding pressure fluctuations and ensuring stable welding force.

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 5

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

Scene Images:

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 6

Welding Test:

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 8

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 9

Capacitance Capacitive Discharge Energy Storage Capacitor Spot Welding Machine Welder 10

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
