Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders

Marchio:	Xingweihan
Numero di modello:	FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
MOQ:	1
prezzo:	USD12000-USD13000
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	50 set/mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

CE, RoHS, ISO

Nome prodotto:

Connettori d'acqua intrecciati in acciaio inossidabile saldatori di cucitura

Applicazione:

Saldatura dei connettori dell'acqua intrecciata

Funzione:

Cucitura Weldinng

Tipo di macchina:

Macchine di saldatura a cucitura

Parole chiave:

Cucitura di rotolamento di resistenza della macchina della saldatura continua

Materiale di saldatura:

Acciaio al carbonio Acciaio inossidabile Aluminio

Tipo:

Saldatura a cuciture circolari

Garanzia:

12 mesi di garanzia

Dopo il servizio di garanzia:

Supporto tecnico video, supporto online e pezzi di ricambio

Servizio post-vendita fornito:

Parti di ricambio gratuiti, installazione sul campo, messa in servizio e formazione

Imballaggi particolari:

Cassa in legno

Capacità di alimentazione:

50 set/mese

Descrizione del prodotto

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders

Product Introduction:

This corrugated stainless steel variable frequency ring seam welding machine is an efficient welding equipment that integrates automation and humanized design, specially designed for water connection applications of flexible corrugated stainless steel pipe fittings. It adopts a working mode of "manual feeding automatic clamping, rotary welding manual material extraction and cooling", fully delegating the highly repetitive core welding process to the machine for automatic completion, ensuring stable and efficient production pace. Its sturdy heavy-duty body (1200KG) provides reliable support for continuous mass production and is an ideal choice for production lines of household appliance connectors such as dishwashers and washing machines.

Features:

1.The body is designed for impact resistance, earthquake resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.

2.The upper electrode is pressurized by a gas-liquid booster cylinder, and the electrode pressure is adjustable. The gas-liquid booster cylinder can achieve high output of the hydraulic cylinder using general air pressure without the need for a hydraulic unit.

3.The equipment is equipped with air pressure, water pressure switches, and alarms. It can effectively prevent water or gas shortage welding, thereby protecting the safety of equipment use.

4.The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

5.Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.

6.Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical.

7.Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

Technical Parameters:

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

General Structures:

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 0

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 1

Detailed Images:

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 2

Efficient Automation Process: Achieving fully automated operations from clamping, automatic rotation to welding, with manual labor only responsible for simple loading and unloading, greatly improving production efficiency and consistency.

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 3

Integrated Cooling Solution: The external water storage tank seamlessly connects with the welding process, facilitating immediate cooling of the workpiece after welding, optimizing the production process, and improving overall operational efficiency.

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 4

Gas Storage Tanks: The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 5

Waterway Components: All waterway components undergo surface treatment to prevent rusting, and waterway drainage is independently discharged to the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

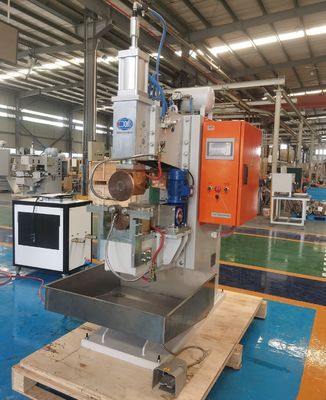

Scene Images:

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 6

Application:

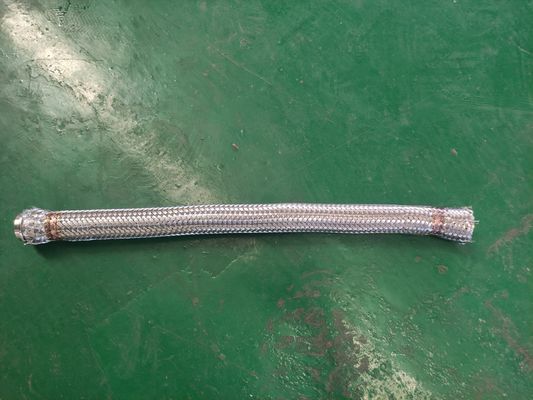

Before Welding:

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 7

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 8

After Welding:

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 9

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders 10

Multi Types of Seam Welders:

Horizontal Automatic Seam Welding Machine: The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Company Profile:

Item/Model		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700
