Macchina della saldatura continua
Created with Pixso.

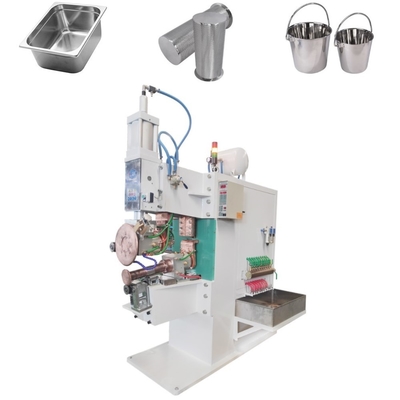

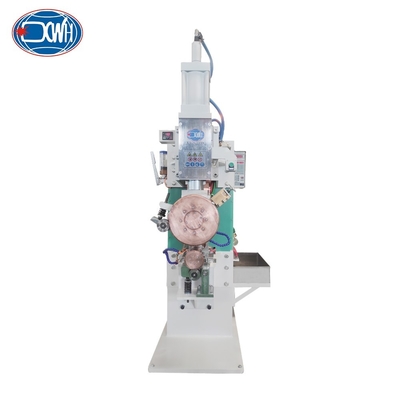

Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine

Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine

Marchio: XWH
Numero di modello: FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E
MOQ: 1 set
prezzo: $18000.00 - $20000.00
Condizioni di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento: 50 set/mese
Informazioni dettagliate
Luogo di origine:
Cina
Certificazione:
CE
Nome del prodotto:
Macchina automatica della saldatura continua
Applicazione:
Saldatura del serbatoio di combustibile
Funzione:
Serbatoio di combustibile per saldatura
Tipo:
Semi-automatici
Caratteristiche:
Alta efficienza
Materiale di saldatura:
Metallo del acciaio al carbonio di acciaio inossidabile
Servizio post-garanzia:
Supporto tecnico video, supporto online e ricambi
Servizio post-vendita:
Parti di ricambio gratuite, installazione sul campo, messa in servizio e formazione
Certificazione:
CE
Imballaggi particolari:
Cassa in legno
Capacità di alimentazione:
50 set/mese
Evidenziare:

Macchine di saldatura per serbatoi di combustibile in acciaio inossidabile

,

Macchine di saldatura a cucitura laterale di alluminio

,

Macchine di saldatura a cuciture SS galvanizzate

Descrizione del prodotto




Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine



Product Introduction:


The FN series seam welding machine adopts an advanced digital logic control method, which can accurately control the size of the current and the length of welding time. Suitable for welding between metals such as iron, zinc, nickel, stainless steel, tungsten, and other dissimilar metals. Due to the pulse welding performance of this series of welding machines, the welding effect is good.





Technical Parameters:




Model/Item
Unit
FN-80-H
FN-100-H
FN-160-H
FN-100-E
FN-160-E



Rated power

KVA
80
100
160
100
160



Voltage input
V



380



 380



380



380



380





Frequency
Hz
50
50
50
50
50



Max. short circuit current
KA
26
30
40
30
40



Working stroke

  mm

100

100

100

100

100



Welding efficiency
m/min
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9
0.7-3.9



Max. force
N
6000
6000
7800
6000
7800



Max. welding capacity
mm
1.2+1.2
1.5+1.5
2.0+2.0
1.5+1.5
2.0+2.0



 Motor Power

W
550
750
750
750
400



Cooling consumption
L/min
8
8
10
8
10

Weight
Kg
380
510
630
530
700





Features:



1. Rack: The rack is a vertical structure made of high-quality steel plates and sections that have been welded, heat-treated (stress relieved), and precision machined to ensure the required rigidity and accuracy during workpiece welding.



2. Rolling welding head component: The rolling welding head box is made of chrome zirconium copper casting and processing as a whole. The rotating shaft conducts electricity through contact with the silver tile, resulting in higher conductivity efficiency. Internal water cooling is used near the conductive contact area to timely remove heat and ensure conductivity and service life.



3. The pressurization mechanism adopts vertical pressurization, and the electromagnetic valve is connected to the cylinder at the shortest distance, greatly accelerating the reaction speed of the action and improving production efficiency; The pressure guiding mechanism adopts self-lubricating bearings, which have good follow-up performance; Reduced the impact force of the electrode on the workpiece during pressurization, preventing damage to the workpiece and excessive depth of pits during welding, reducing electrode deformation and wear.





General Structures:



Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 0

Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 1



Detail Images:



Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 2



Multi Types:



Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 3Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 4

Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 5Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 6





Application:



Galvanized Stainless Steel Fuel Tank Aluminum Rolling Side Seam Welding Machine 7



Please note: the welding machine can be custom-made according to your requirements.
